Numéro d'article :
YT-5102-C1-BCapteur :
ASX340F/NON. :
2.0EFL :
1.08TTL optique :
10.24Taille de filetage :
M12*P0.5Champ de vue (H/V/D) :
139/112/176Structure :
2G2PYT-5102-C1-B: Protect a safe journey

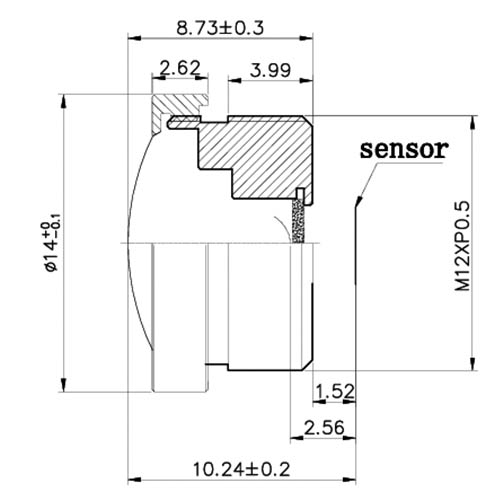

know more about YT-5102-C1-B Lens parameters | |
EFL (mm) | 1.08 |
F/NO. | 2.0 |
Optical TTL | 10.24 |
BACK FOCAL LENGTH | 5.72 |
FLANGE BACK LENGTH | 4.81 |
TV DISTORTION | -18% |
CRA | 17° |
Infrared |
/ |
WAVEIENGTH |
400~700nm |
Structure |
2G2P |
Yunding Optical YT-5102-C1-B can work normally in various bad weather conditions, such as harsh sunlight, strong rain and snow, etc. As a rearview mirror, it can provide real-time images of the driver's surroundings to help the driver get a more accurate perception. For example, the driver can observe whether other vehicles are approaching or overtaking the vehicle at the rear of the vehicle through the rearview mirror, helping to make more informed driving decisions.
The YT-5102-C1-B vehicle rearview camera lens has a total optical length of 10.24mm and a resolution of 640 * 480, giving you a wide field of view. It helps drivers observe the situation behind the vehicle, including other vehicles, pedestrians, obstacles, etc. It provides an additional perspective of the driver's blind spot and helps drivers better understand the surrounding traffic conditions.
The YT-5102-C1-B vehicle rearview camera lens is equipped with a 1.08mm focal length and 2.0 aperture, giving you a delicate and bright picture performance. It helps the driver to more easily observe the situation behind when backing up. This is very useful for driving large vehicles in tight spaces to reverse or avoid rolling over obstacles.
