Numéro d'article :
YT-9888-A1Capteur :
1/2.3''F/NON. :
2.8EFL :
3.8mmTTL optique :
25.3Taille de filetage :
M12*P0.5Champ de vue (H/V/D) :
82°/65°/95°Structure :
8E+IR(BLUE GLASS)
YT-9888-A1: The Pinnacle of Aerial Imaging Clarity
| know more about YT-9888-A1 UAV Lens parameters | |
| Sensor Circle(mm) | 1/2.3'' |
| Focal Length(EFL) | 3.8mm |
| F/NO.(Infinite) | 2.8 |
| Optical TTL | 25.3 |
| Mechanical TTL | 25.3 |
| Back Focal Length | 5.59 |
| Flange Back Length | 1.72 |
| TV Distortion | 2.8% |
Aerial Mastery with Precision Optics
The YT-9888-A1 drone camera lens is a feat of optical engineering, designed to capture the world from new heights. With a 3.8mm optical focal length and a compact 25.3mm optical total length, including a Back Focal Length (BFL) of 5.59mm, this camera lens offers the precision and versatility needed for various aerial photography and videography applications.
High-Definition Aerial Imaging
Equipped to match a 1/2.3'' inch CMOS sensor, the YT-9888-A1 fpv camera lens achieves a 16-megapixel high-definition resolution. It provides a 95-degree diagonal field of view (Dfov), an 82-degree horizontal field of view (Hfov), and a 65-degree vertical angle, with a maximum imaging circle diameter of 8.1mm. This ensures that every shot captures the grandeur of the aerial landscape.
Versatile Aperture for Diverse Conditions
Featuring an F/NO.2.8 aperture, the YT-9888-A1 drone camera lens is adept at handling a wide range of lighting conditions, from the brilliance of high noon to the soft glow of twilight. This aperture, combined with a sensitivity range of 400~700nm, makes it an excellent choice for capturing vibrant, true-to-life images in any lighting.
Customizable Integration for Seamless Operation

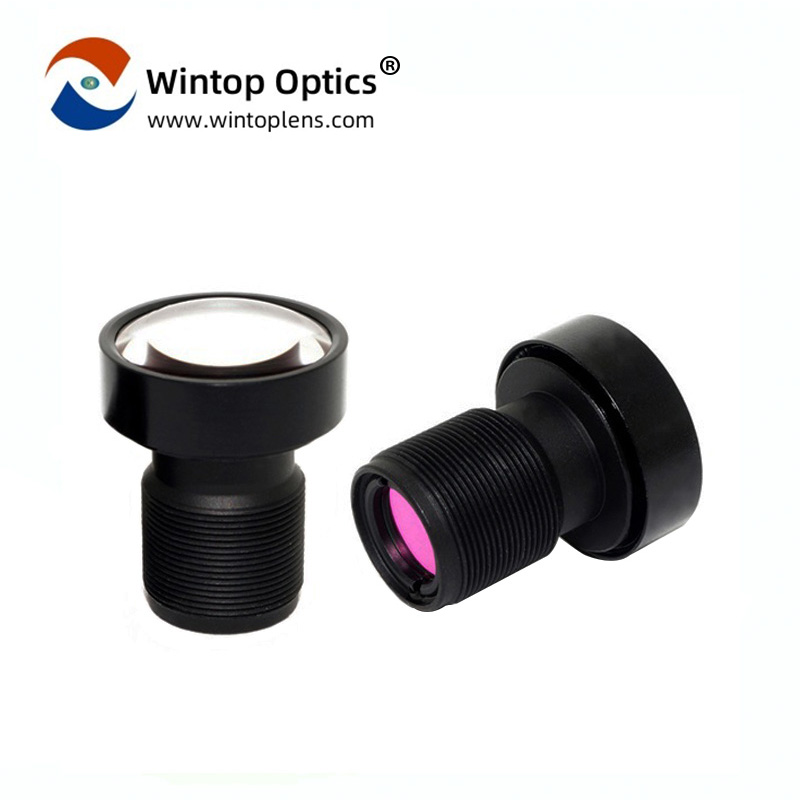

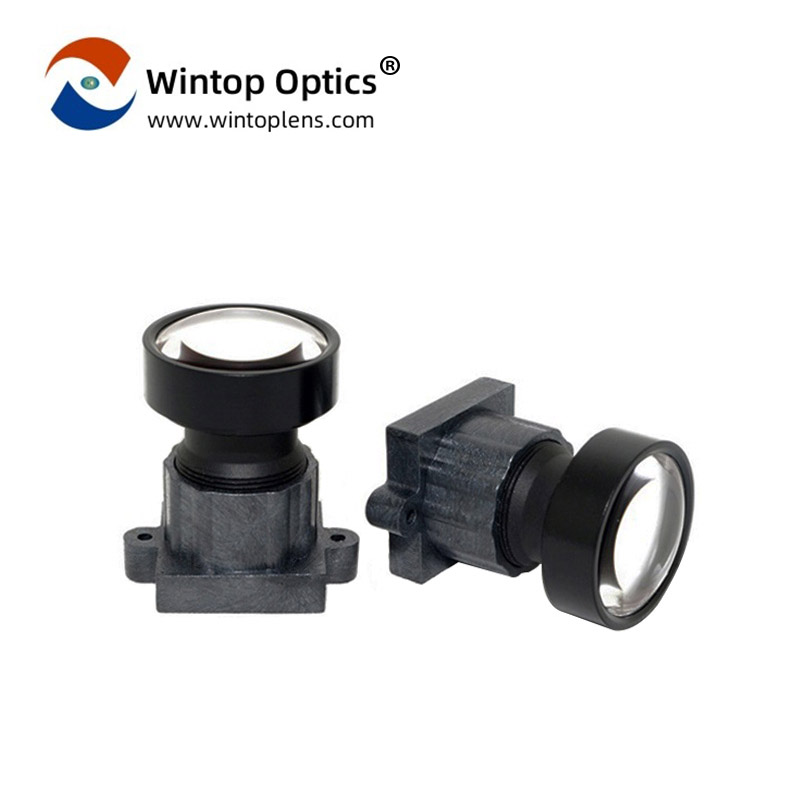

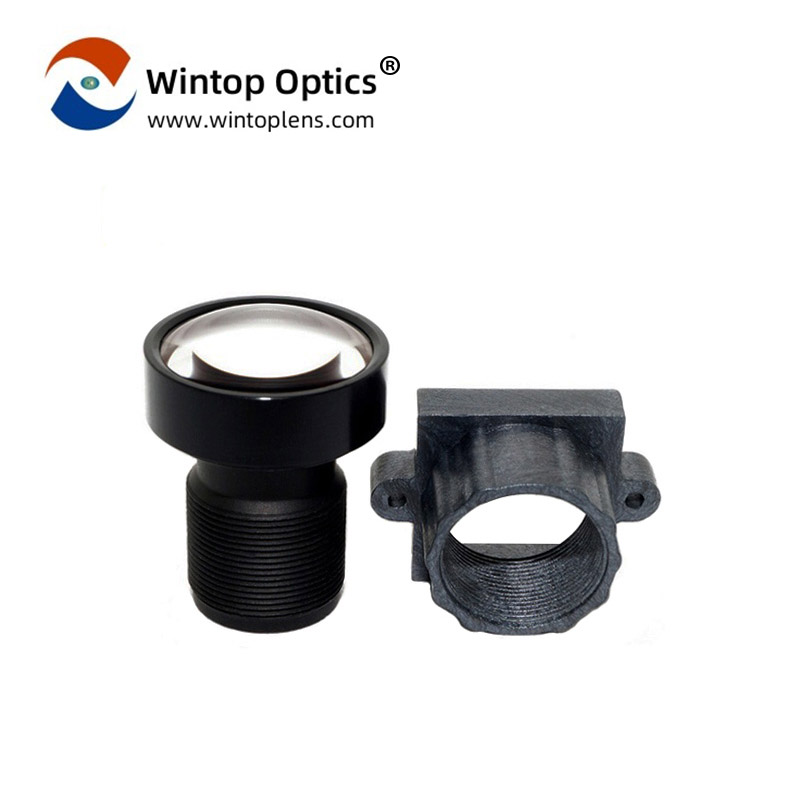

The drone camera lens comes with an M12 mount (M12*P0.5), ensuring compatibility with a broad spectrum of drone camera systems. The lens end cap diameter is adjustable from 16-23mm, allowing for customization to meet specific project requirements.
Durable Construction with Advanced Lens Technology
The YT-9888-A1 sports camera is encased in a robust metal barrel, signifying its high-quality build. It utilizes a full-glass lens construction, enhancing optical performance and durability. The inclusion of a blue glass IR filter ensures excellent MTF performance and reliability, providing clear and sharp images.
Broad Application Reach Beyond Aerial Imaging
The YT-9888-A1 drone camera lens's utility extends beyond drones. It is suitable for action cameras, handheld gimbal cameras, intelligent robot cameras, AI cameras, consumer electronics, sports cameras, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary
The YT-9888-A1 drone camera lens is the embodiment of aerial imaging excellence, offering a combination of high-definition imaging, a versatile aperture, and robust construction. Its advanced features make it an indispensable tool for drone enthusiasts, professional photographers, and a wide range of imaging applications. Experience the heights of visual capture with the YT-9888-A1, ensuring every perspective is captured with clarity and precision.
